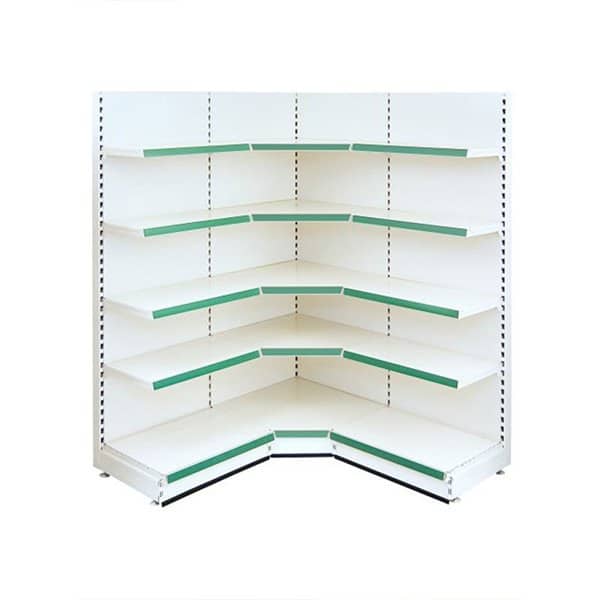

German Tegometall Corner Retail Shelving
Economic version of corner retail shelving
Due to the deterioration of the economic environment, some customers begin to require the use of low-configuration components, such as 0.7mm shelf panels, 2.5mm brackets, 0.6mm caps, and so on.
Load-bearing Test of corner retail shelving
Load-bearing of each layer: according to the load bearing test, the ordinary 2H bracket can bear the weight of each layer of 200kg for one month. The 3H bracket is loaded approximately at each layer of the 250kg. To know more, please read our article “Shop shelving quality control system and packing solution“.
Shelf panel under load bearing test
The most common colors of gondola end shelving are RAL9001, RAL7035, RAL7015, RAL9006, and so on.
Most common colors of corner retail shelving

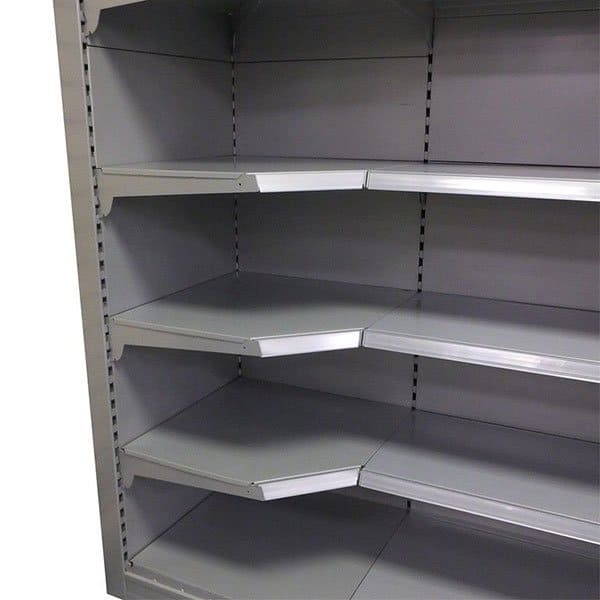

Installation of corner shelving
The order of installation is upright – base leg – back panel – plinth – bottom shelf panel – bracket – top shelf panel – other parts. The key point is that the base leg installation should not be too loose or too tight, too loose will cause the whole shelf to shake, too tight will not be stuck into the upright. Please go to Youtube to search for related installation videos.
Base leg and back panel solutions for different gondola shelving height
The ground height of German Tegometall and Anchen is 150, but the adjustment screw on the base leg is about 40mm, plus the extra 10mm of the upright, so the ground height deducted when calculating the back panel should be 100.
