The supermarket gondola rack, invented by a famous manufacturer in Shanghai, is one of the most popular shelving in the world.
Main Features of Supermarket Gondola Racks
- The column and the foot are connected by CO2 TIG welding, which improves the weak point of the load-bearing capacity and has high stability of the whole shelving.
- The double row 50mm pitch hole design on the upright, easy to assemble.
- Integrated design for the shelf panel, no welding joint, firm and durable, mold roll forming, reasonable structure.Strong load-bearing laminate design, thickened cold-rolled plate, strong load-bearing, strong and durable, safe and guaranteed.
- The shelf and column are button structures, and the shelf height can be adjusted up and down by 50 mm, which can be increased or decreased freely, no thread connection is needed, and it is easy to disassemble and assemble.
- The shelf bracket is reinforced, which can increase the load-bearing capacity under the same thickness.
- The perforated back panel is a neatly arranged round hole, and the corresponding hole back plate hook can be installed on it.
- If there is no end shelving on both sides of the shelving, a side cover can be installed on both sides to make the whole shelving more beautiful.
- A separate TG table can be used without the need for base legs on the end shelving, and some heavier or larger goods can be placed on it.
- High manufacturing efficiency and low comprehensive cost.

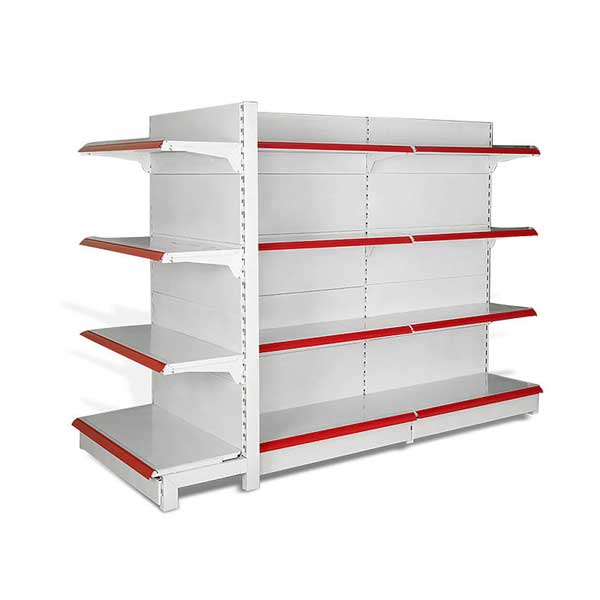

Supermarket gondola rack in supermarket (TG table end shelving)

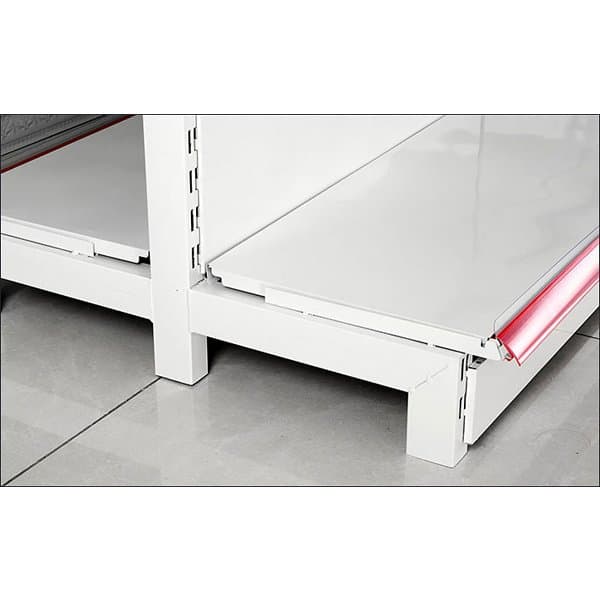

The firm structure of the welded upright and base leg

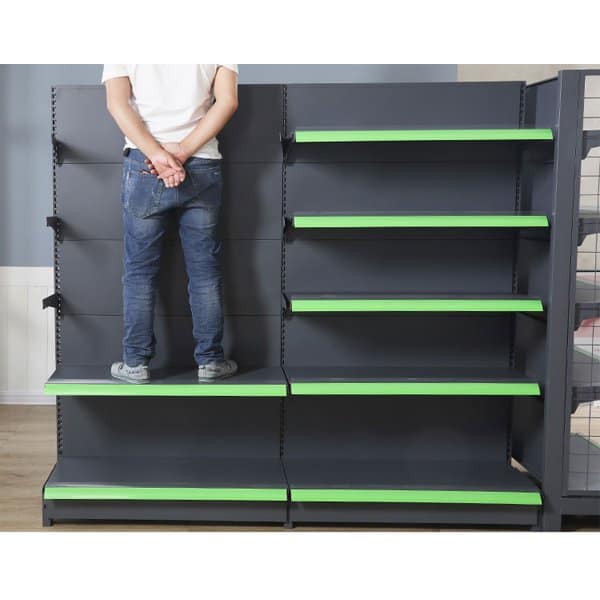

Heavy duty load-bearing capacity
There is a hook at the front end of the bracket, which is directly stuck with the post and is not easy to slip off.
There is a direct clamping between one back panel and another, and there is no need for tools such as screws.
Basic parts
The main components of the gondola shelving include an upright, base leg, shelf panel, bracket, back panel, top cover, Plinth, price tag, and so on.
Upright
50mm pitch
Thickness options 1.5/2.0/2.5mm
Upright and feet cross-section size options 40*60/30*80mm
Height/Length e.g. 2100*450mm
Shelf panel
Thickness options 0.5/0.6/0.7/0.8/1.0mm
Length options 600/700/800/900/1000/1200mm
Width options 300/350/400/450/500/550mm
The bottom shelf panel should be at least 50mm wider than the top shelf panel.
Standard shelf panel
Keells shelf panel back
Back panel
Thickness options 0.3/0.4/0.5/0.6mm for plain back panel, 0.7/0.8/1.0mm for pegboard back panel.
Length options 600/700/800/900/1000/1200mm
Width options 100/150/200/250/300/350/400/450mm
Shelf bracket
Thickness options 1.8/2.0/2.5/3.0mm
Length options 300/350/400/450/500/550mm
Gondola top cover
Thickness options 0.4/0.5/0.6/0.7/0.8mm
Length options 600/700/800/900/1000/1200mm
Width options 60/80mm
Plinth
Thickness options 0.4/0.5/0.6/0.7/0.8mm
Length options 600/700/800/900/1000/1200mm
TG table
Length options 600/700/800/900/1000/1200mm
Price tag
Length options 600/700/800/900/1000/1200mm
Front Riser
Length options 600/700/800/900/1000/1200mm
Wire riser which fit into the hole in the shelf panel front slot
Steel, plastic and Acrylic riser to put into the shelf panel front slot
Supermarket gondola rack extension and accessories
Beam
The beam is a simple but useful accessory to hold on various hooks.
Length options 600/700/800/900/1000/1200mm
Hooks
Various hooks are available, to meet all kinds of requests for different commercial needs.
Color: powder coated / zinc plated / chrome plated
Length options 100/150/200/250/300/350/400/450/500mm
Zinc plated pegboard hooks
White double blister hooks for beam
Beams and hooks with price tag
Beams and hooks with price tag 2
Beams, hanging basket and double blister hooks with price tag
Installation of supermarket gondola rack system
The order of installation is upright – back panel – plinth – bottom shelf panel – bracket – top shelf panel – gondola cover – other parts.
Double sided white supermarket rack
Single sided white supermarket rack
The structure of the supermarket gondola rack system
In a group of shelving, the first one is called the starter bay, the main shelving, and the rest is called the Add-on. The starter bay has more upright and foot on one side than the add-on shelving and shares the upright and foot on the other side (shared the hole structure). You can think of the main shelving as a person with two feet, while if you think of the shelving as a person with one foot, the person with one foot must stand on the shoulder of the next person. For example, if a row is composed of 5 shelving, it can be regarded as the starter bay and four add-on bay. The uprights and feet that need to be used are 6 (2 for one main shelving and 1 for each of the four add-on shelving). Through this design, we saved 4 uprights (originally 10 uprights were needed for 5 shelving).
The shelving installed at the side end of this set of shelving is called the end rack. Shelves placed against the wall are called single sided gondola racks, Wall racks, and separate ones are called double sided gondola racks, Gondola racks, and Island racks. The single sided supermarket rack is very similar to the end rack.
Supermarket rack Starter, add-on, end unit and parts
Difference between the starter and the add-on
Safety conditions
Supermarket rack must be installed on the horizontal floor
The force of impact must not be thrown to the rack
Only professional workers are allowed to do the installation and adjustment
Goods should be put evenly on the shelving
To calculate the unit price of the shelving, we need to know:
The shelving style that the customer needs, such as Tegometall, Eden, Itab, Gondola shelving, Wire shelving, display rack, etc.,
The number of single-sided, double-sided, and end shelving
The number of layers is 3-6 layers in general.
The load-bearing or what goods are to be put on each layer, 50KG-250KG per layer for general.
The overall length of the shelving.
The overall width of the shelving.
The overall height of the shelving.
For example, “double-sided gondola shelving L1000mm*W500mm*H2100mm, 5 layers, 150 sets, load-bearing 100kg for each layer”.
Corner rack solution
Internal corner rack
Internal corner rack
Internal corner rack
External corner rack
External corner rack
Pegboard supermarket rack solution
Various pegboard accessories and hooks are available, to meet all kinds of requests for different commercial needs.
Pegboard supermarket wall rack solution
