Integrated Rack

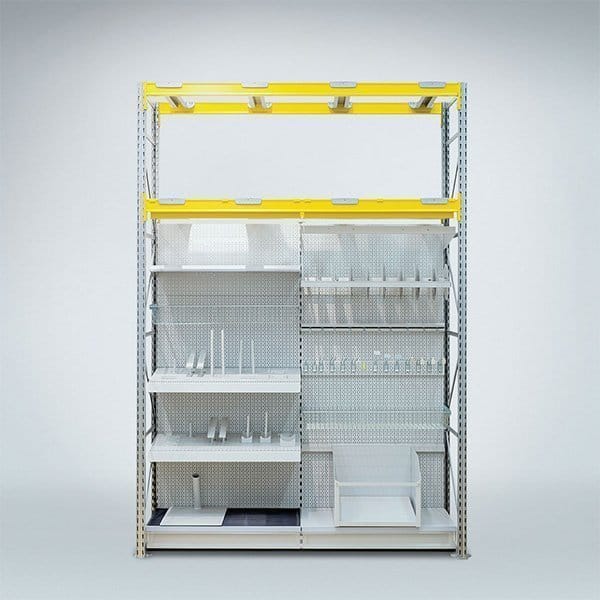

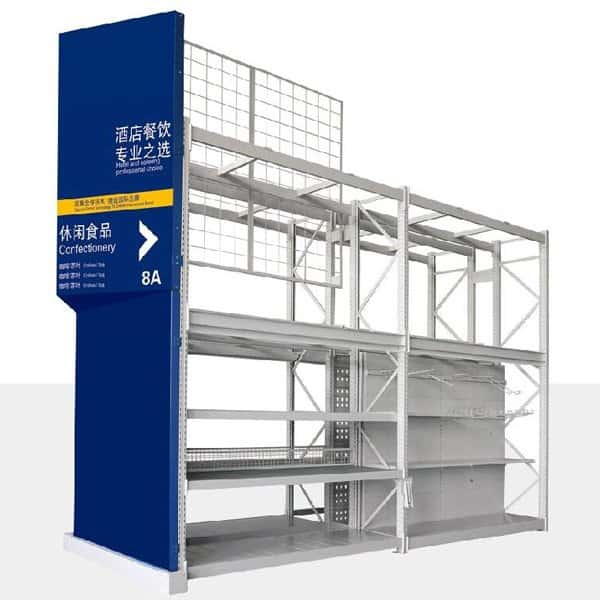

Integrated rack is also been known as “Mini Rack”, it’s a Tegometall designed racking system, mostly used in European supermarkets like Metro. It is combined with a light duty racking system and a standard Tegometall shop shelving. With this design, you can store and display your goods on the same racking, which will increase your turnover.

Product Name

Integrated rack

Model Number

RS-IR

Material

SPCC Q235 steel

HS Code

940320

Upright Specification

Customized, with upright 55*40mm or 70*80mm

Length

1000-3000mm

Width

500-800mm for single-sided, 950-1550mm for double sided.

Height

2000-5000mm

Color

Customized

Packaging

Plastic foam wrapped, Carton Box, Wooden pallet

MOQ

200 sets

Usage

Warehouse storage

Guarantee

2 years warranty

certificate-icons
Details About Integrated Rack

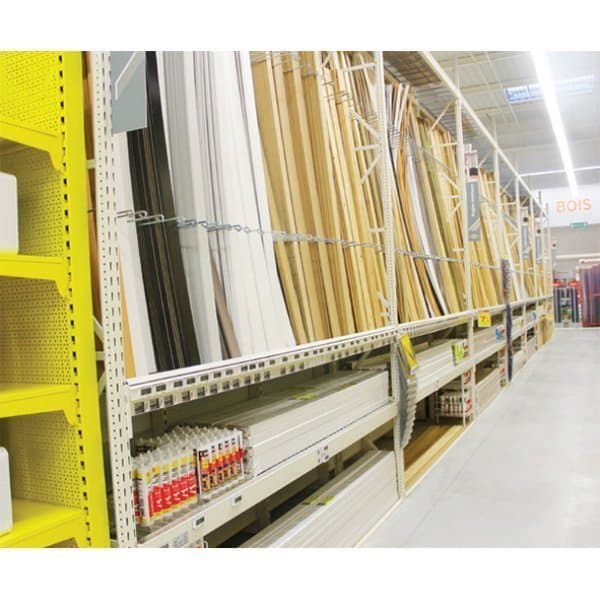

With accessories of the IR system, you can easily create an integrated rack or so-called “mini rack”, which is to combines a Tegometall shop shelving into a pallet racking (Tegometall common parts). You can see this rack system in Metro. This design allows using the high load-bearing capacity of the pallet racking to store or display Merchandise over a height of 2.2-2.5m and to display and manage sales from a standard Tegometall supermarket shelving. It can attach different accessories of a shop shelving (Shelf panel, back panel, …) to meet different demands, in perforations of the Upright frames or in perforations of special integrating accessories – adapters. Integrated rack is very adapted for building “integrations” with shelf panel for shop shelving system. In the following descriptions, we will present basic accessories and how to select them. All the shop shelving system accessories can be used in this system.

Integrated Rack includes a series of structures built on the frames made of uprights with a rectangular cross-section, with a size 55*40mm. Upright frames are the basic parts of the load-bearing integrated rack system.



Integrated rack components

Applications of Integrated Rack

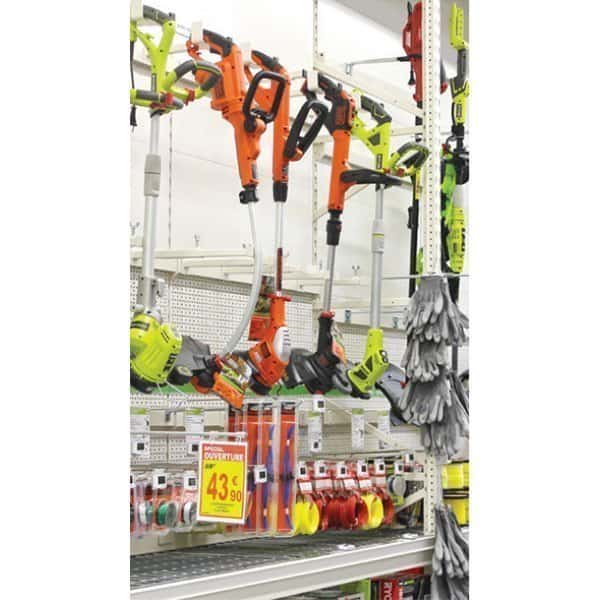

Power Tools Display Rack. It is a very popular application for hardware stores, DIY stores, garden centers in Europe and other countries, the power tools come in heavy-duty, non-standard shape features, and the integrated rack is the perfect solution because the storage rack frame offers stability, and the shop shelving system offers various solutions of pegboard gondola and display hooks to meet all your needs. The integrated rack looks industry style and powerful, and can skyrocket your store efficiency because you can both store and sell the products on the same rack. So the rack is attractive, safe, efficient, and versatile.



Integrated Rack for Power Tools Display
Integrated Rack for Power Tools Display

Integrated rack system parts

Shelf panel

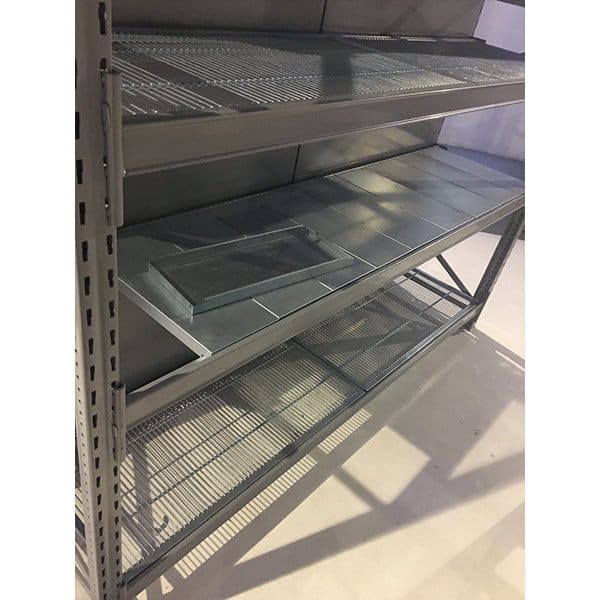

If the goods are not to be displayed on pallets, it is better to use other parts like different types of shelf panels. We have shelf panels made of laminated particle boards, and steel sheet boards, also we have perforated shelf panels and steel wire lattices, to allow free flow of water of the re-ghting system. After studying the local biding protection regulations, an appropriate solution should be worked out. When using a Laminated particleboard shelf panel on transversal beams, you should make sure a suitable number of support beams should be used, for the support of the shelf panels.



Shelf panel allowing water flow

If using automatic systems, free water flow through storage racking levels must be assured. We recommend using perforated shelf panels or steel wire lattices.

Perforated shelf panels. Made of galvanized steel sheet, which is resistant and durable for storage, supported by crossbeams. The load-bearing capacity of the whole shelf panel will not exceed the load-bearing capacity of the respective pair of crossbeams under the shelf panels.

Steel wire lattice shelf panels. Made of steel wire with galvanized or powder coating. The bright lattice is very useful for automatic system facilities.



Beams

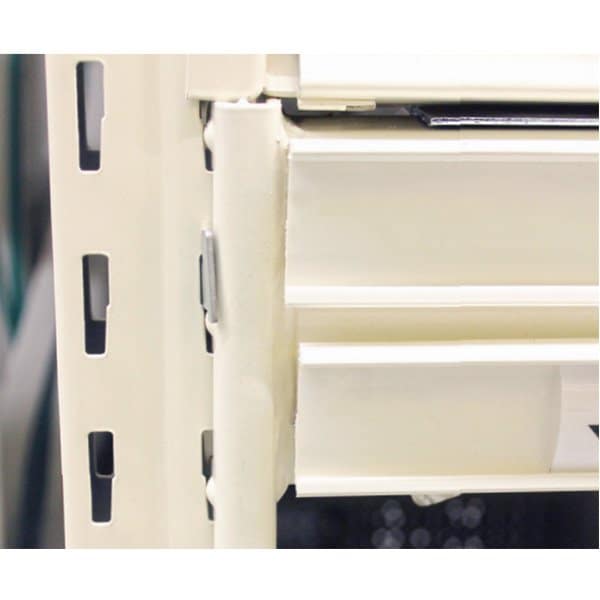

Beams are the important longitudinal parts, offering the load-bearing capacity of the Integrated rack. For construction, beams are built of various types of steel pipes or tubes, with welded-shaped claws, welded in the bottom, top, and middle positions.



How to select the supports

According to numerous possibilities and complicated dimensional separate requirements, you should select with extra caution when selecting the right supports for the integrated rack configuration.

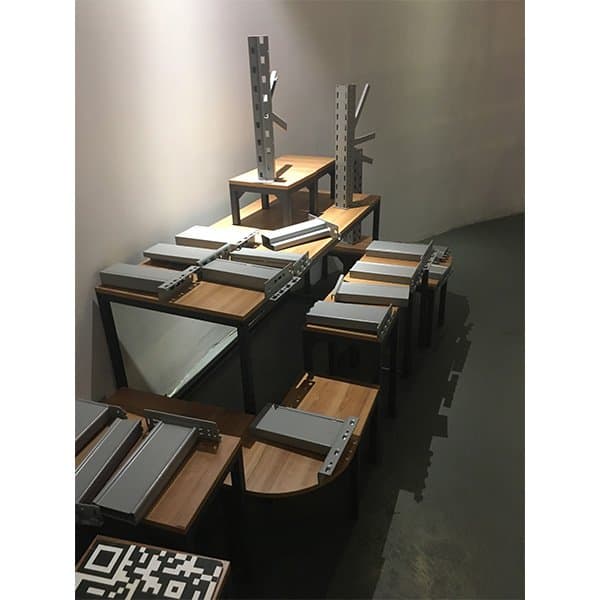

Integrated rack parts



Tegometall shop shelving parts and accessories for integrated rack system

There are as many as a hundred parts and accessories for an integrated rack and Tegometall shelving available in RedSheep,  to know more parts and their functions, please refer to our Tegometall shop shelving accessories page.

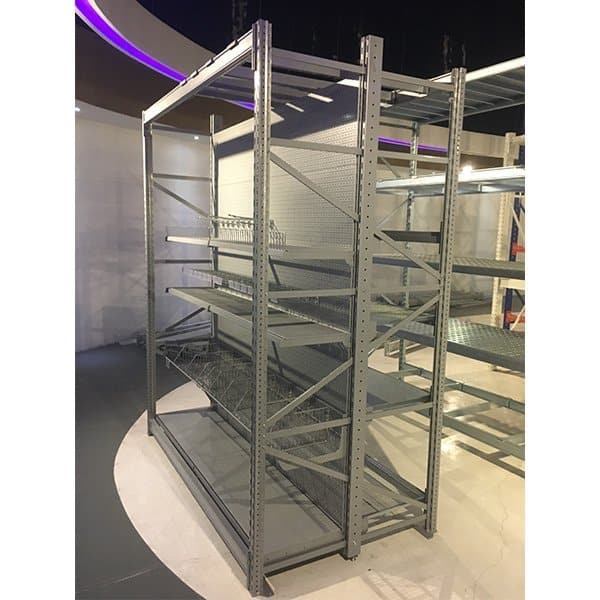

The mini rack system, integrated rack system 55×40

The integrated shelving system 55×40 is a standard medium-duty racking system + standard pitch 50mm shelving system.
The racking frames are the basic elements of the loading rack structure, while the inside P50 shelving is another additional function.
The integrated rack system and shelving system are compatible with each other, some sizes are fixed to fit the shelving system.
It can both store your goods and display your goods in the same racking, convenient/save space/combined functions.

The integrated rack is adjustable according to your kinds of requirements.
–frames of different heights/widths are available.
–various beams of different shapes/lengths/loading capacities are available, standard rectangular tube + reinforced bone shape + step profile.
–kinds of beam loading shelves are available, standard steel shelves + steel perforated shelves + steel wire shelves + wooden shelves.
–various accessories are available, for display or advertisement.
–kinds of standard P50 shelving system&accessories can be installed inside.

Display your goods, store your goods.



Product Name

Integrated rack

Model Number

RS-IR

Material

SPCC Q235 steel

HS Code

940320

Upright Specification

Customized, with upright 55*40mm or 70*80mm

Length

1000-3000mm

Width

500-800mm for single-sided, 950-1550mm for double sided.

Height

2000-5000mm

Color

Customized

Packaging

Plastic foam wrapped, Carton Box, Wooden pallet

MOQ

200 sets

Usage

Warehouse storage

Guarantee

2 years warranty

FAQ

We are a supermarket trolley, gondola shelving manufacturer and trading company. In fact, we have specialized in shopping cart and gondola shelving industry since 2000. After 20 years’ development, now we have full connections in China on this business.

At present, we have around 300 workers in our factory, 100 for production, 80 for power coating and packaging, 20 for quality control, R&D, and production management. Many brand buyers have had a good cooperation with us for years, such as Wal-mart, ALDI, Tesco, IKEA, you can click to know more about RedSheep factory, we are glad to serve you with our experience as a potential supplier.

Our factory is located in Fushou Village, Shanghu Town, Changshu City, Jiangsu Province, China, which is close to Shanghai.
You can fly to Shanghai airport(2 and half hours to us) or Wuxi airport (60 mins to us) directly. You can also take a high-speed train to Wuxi East station (40 mins to us), or Wuxi station (1.5 hours to us)

Generally, all of our products are made from Q235 SPCC steel and HDPP plastic.

The sample is available for different products, please contact our sales to know more details.

Yes, as a gondola shelving and supermarket cart manufacturer, we encourage our cutomer to develop new design by cooperating with us.
